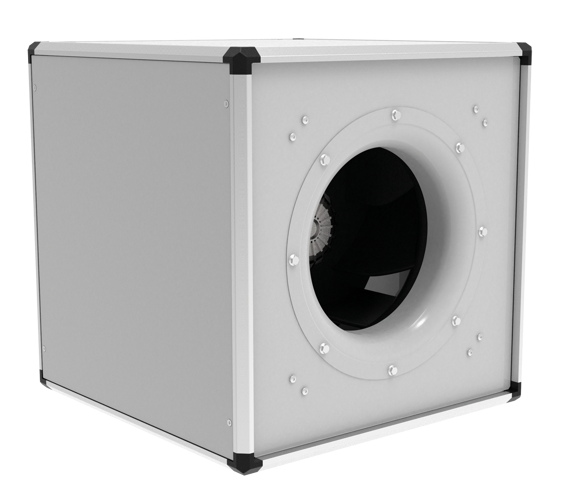

129 POWERBOX GF FANS - ESTOC TARGE FEATURES • Sizes from 355 to 630 mm diameter • Air flow up to 4.0 m3/s • Static pressures up to 1300 Pa • Adjustable controllable external rotor motors • Multiple outlet orientations Motor located out of air stream • Air discharged at 90 degrees ELECTRICAL SUPPLY 220-240V/50Hz/1f 380-420V/50Hz/3f TEMPERATURE RANGE Only for use at 100ºC or above, which makes it exempt from ErP legislation. SIZES 355, 400, 450, 500, 560 and 630. FEATURES AND CONSTRUCTION The Estoc Targe casing is galvanized and made from sheet steel with PentaPost Construction and acoustic insulation made from fibre glass with a thickness of 20 mm. Can be horizontal or vertical mounted with weather proof hood and has removable side panels. Drip tray included as standard. IMPELLER The Estoc Targe are equipped with high efficiency backward curved centrifugal impellers made of aluminium. MOTOR Motor is situated out of air stream. The impellers together with the external rotor motors are dynamically balanced to quality standard G2,5 DIN ISO 19410 SPEED CONTROLLERS Speed is variable using auto transformers and inverter control with auxiliary electronic control option and includes a integrated emergency switch (see pages 219-267). ErP COMPLIANT 2015 PRODUCT CODE Estoc Targe 50-355-1 • ESTOC Targe = Product Name • 50 = Box Size ie, 50 = 500mm; 67 = 670mm; 80 = 800mm; 10 = 1020mm • 355 = Spigot Diameter size • 1 = 1f or 3 = 3f ACCESSORIES (Pages 143-150) - CONTROLLERS (Pages 219-267) The range of accessories include dampers, flexible connectors, service doors, outlet covers, guards, side covering and insulating connections. A quick reference guide is shown below. SOC STP SWR SFC Mounting track/SMT Electronic Controller Controls Transformer Controls Inverter Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without noticePRODUCT AND ELECTRICAL DETAILS *Sound power levels are average dBA at 3 metres distance over sphere, under free field conditions and are presented for comparative purposes only. Values shown are those at the mid-point of the performance curve. **For speed controllers, please see pages 219-267. For ErP efficiency ratings and grades please refer to our Fan Selector for more information. DRAWINGS AND DIMENSIONS All dimensions shown in mm Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without notice 130 355 - 500 560 - 630 A b* a* d D C B b* d D C B A a* Product Code Product Number Speed rpm Motor Frame Electrical Supply Electrical Current Wiring Diagrams **Speed Controllers Maximum Operating Temp°C Breakout Motor (kW) Full Load Current (A) Starting Current (A) Electronic/ Transformer *Sound Level db(A) (3m) Estoc Targe 50-355-1 GF503551 1360 Integral 220-240 V/50 Hz/1 Ph 0.31 1.4 3.5 CD3006 ME1.3 110 35 Estoc Targe 67-400-1 GF674001 1270 Integral 220-240 V/50 Hz/1 Ph 0.53 2.2 4.84 CD3006 ME1.3 90 39 Estoc Targe 67-450-1 GF674501 1380 Integral 220-240 V/50 Hz/1 Ph 1 4.6 11.96 CD3006 ME1.6 80 44 Estoc Targe 50-355-3 GF503553 1360 Integral 380-420 V/50 Hz/3 Ph 0.31 0.72 2.59 CD3031 TDID 2.5 110 35 Estoc Targe 67-400-3 GF674003 1240 Integral 380-420 V/50 Hz/3 Ph 0.46 0.95 2.75 CD3031 TDID 2.5 100 38 Estoc Targe 67-450-3 GF674503 1380 Integral 380-420 V/50 Hz/3 Ph 0.94 1.75 8.75 CD3031 TDID 2.5 100 44 Estoc Targe 80-500-3 GF805003 1380 Integral 380-420 V/50 Hz/3 Ph 1.5 3 14.7 CD3032 TDID 4 80 47 Estoc Targe 80-560-3 GF805603 1410 Integral 380-420 V/50 Hz/3 Ph 2.5 7 24.5 CD3032 TDID 8 100 49 Estoc Targe 80-630-3 GF806303 1445 Integral 380-420 V/50 Hz/3 Ph 4.4 8 46.4 CD3032 IDDXF 54 7.2 90 53 Estoc Targe 02-630-3 GF106303 1460 Integral 380-420 V/50 Hz/3 Ph 6 10.8 62.64 CD3032 IDDXF 54 7.2 75 91 Product Code A a* ☐ B ☐ b* ☐ C Ø D Ø d Weight Max (kg) ESTOC TARGE 50-355 420 190 410 380 500 365 228 36 ESTOC TARGE 67-400 500 230 580 550 670 404 257 55 ESTOC TARGE 67-450 500 230 580 550 670 545 289 62 ESTOC TARGE 80-500 590 310 710 680 800 504 325 95 ESTOC TARGE 80-560 740 310 710 680 800 570 362 100 ESTOC TARGE 80-630 800 310 710 680 800 640 410 105 ESTOC TARGE 102-630 800 370 900 900 1020 640 410 165 Products in bold are available from our UK Distributors on next day delivery, if ordered by 4pm. Please call to confirm availability on 01206 222 555. ErP COMPLIANT 2015131 PERFORMANCE CHARTS ESTOC TARGE 50-355-1 - GF503551 500 450 400 350 300 Static Pressure (Pa) 250 200 150 100 50 C hart UNO ME 50 355 4E 240V 160V 145V 130V 105V 60V 0 0 0.1 0.2 0.3 0.4 ESTOC TARGE 67-400-1 - GF674001 C hart UNO ME 67 400 4E 600 500 400 Static Pressure (Pa) 300 200 100 0.5 Volume Flow (m3/s) 240V 0.6 0.7 0.8 0.9 160V 145V 130V 105V 60V 0 0 0.2 0.4 0.6 0.8 Volume Flow (m3/s) ESTOC TARGE 67-450-1 - GF674501 C hart UNO ME 67 450 4E 700 600 500 Static Pressure (Pa) 400 300 200 100 240V 160V 145V 130V 105V 1 1.2 1.4 60V 0 0 0.2 0.4 0.6 0.8 1 Volume Flow (m3/s) 1.2 1.4 1.6 1.8 2 Fläkt Woods Specifications are subject to alteration without notice 9513 GB 2015.08 132 PERFORMANCE CHARTS ESTOC TARGE 50-355-3 - GF503553 450 400 350 300 Static Pressure (Pa) 250 200 150 100 50 0 180V 140V 95V 0 0.1 0.2 0.3 ESTOC TARGE 67-400-3 - GF674003 600 500 400 Static Pressure (Pa) 300 200 100 0 280V 230V 180V 140V 95V 0 0.2 0.4 ESTOC TARGE 67-450-3 - GF674503 800 700 600 500 Static Pressure (Pa) 400 300 200 100 0 140V 95V 0 C hart UNO ME 50 355 4D 400V 280V 230V 0.4 0.5 Volume Flow (m3/s) C hart UNO ME 67 400 4D 400V 0.6 Volume Flow (m3/s) C hart UNO ME 67 450 4D 280V 230V 180V 400V 1 Volume Flow (m3/s) 0.6 0.8 1.2 0.7 1 1.4 0.8 1.2 1.6 1.8 0.9 1.4 2 Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without notice133 PERFORMANCE CHARTS ESTOC TARGE 80-500-3 - GF805003 900 800 700 600 Static Pressure (Pa) 500 400 300 200 100 C hart UNO ME 80 500 4D 400V 280V 230V 180V 140V 95V 0 0 0.5 1 1.5 Volume Flow (m3/s) ESTOC TARGE 80-560-3 - GF805603 C hart UNO ME 80 560 4D 1000 900 800 700 600 Static Pressure (Pa) 500 400 300 200 100 280V 230V 180V 140V 400V 2 2.5 95V 0 0 1 1.5 2 2.5 2.5 3 3 3.5 Volume Flow (m3/s) ESTOC TARGE 80-630-3 - GF806303 Chart UNO ME 80 630 4D2 1400 1200 1000 Static Pressure (Pa) 800 600 400 200 0 400V 0 0.5 1 1.5 2 2.5 Volume Flow (m3/s) 3 3.5 4 4.5 Fläkt Woods Specifications are subject to alteration without notice 9513 GB 2015.08 134 PERFORMANCE CHARTS ESTOC TARGE 102-630-3 - GF106303 1600 1400 1200 1000 Static Pressure (Pa) 800 600 400 200 0 0 1 INSTALLATION GUIDE Outdoor installation PowerBox GF Estoc Targe Axial air flow (90º discharge available) All accessories supplied separately Duct Flexible connection Chart UNO ME 102 630 4D2 400V 2 3 4 Volume Flow (m3/s) 5 6 7 Centrifugal Discharge Centrifugal on both sides - free discharge Flexible connection AIRFLOW DIRECTION Mounting track/SMT When the Estoc Targe is used externally with a horizontal outlet an additional weather roof/cowl is available if required. Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without notice135 WIRING DIAGRAMS - ESTOC TARGE CD3006 ESTOC TARGE AC 1PH CD3006 WHITE TERMINAL BLOCK FACTORY ISOLATOR SWITCH 1 TK 2 WHITE TK Z2 CAPACITOR L INTO MOTOR WINDINGS BLACK GREY N YELLOW/GREEN LIVE IN WHEN SAFETY TK CIRCUIT USED AND FIT LINK ISOLATOR 8 6 2 4 E 3 BROWN L 4 BLUE N 5 6 7 EXTERNAL SAFETY SWITCH 8 9 EARTH TK TK L N OUTPUT WHITE WHITE Z2 V2 BLACK CD3031 TARGE 3PH 355-450 BROWN ISOLATOR 1 L1 L2 CD3032 TARGE 3PH 500-630 TK ORANGE 2 BROWN BLUE RED BLACK 4 3 BROWN GREY 6 5 WHITE 8 TK WHITE 10 NO GREY NC GREY PE 1 BLACK 12 7 BROWN WHITE 9 WHITE 11 GREY 14 13 GREY 2 ISOLATOR 1 BROWN TK 2 BLACK 4 3 BROWN 3 BLACK 6 5 4 WHITE 8 7 TK 5 WHITE 10 9 NO GREY 12 11 NC GREY 14 13 PE NOT USED 16 15 BROWN L3 TK TK NO NC PE WHITE WHITE GREY GREY NOT USED L1 L2 L3 TK TK NO NC PE Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without noticeALSO AVAILABLE FROM THE WOODS RANGE Selected products available from our UK Distributors on next day delivery, if ordered by 4pm. Please call 0800 030 2011 for more information. JMv Aerofoil MaXfan2 JM Aerofoil HT JM Aerofoil JM Bifurcated Series 33 Plate Fans Cased & Plate Axial Accessories Sabina EC Box Fans Daisho AC Box Fans Daisho EC Box Fans Estoc Estoc Targe Estoc EC Roof Units Horizontal Roof Units Vertical Fire Dampers Iris Dampers Fire Valves Valves Exhaust VEFS Valves Supply KE Valves Extract KK Louvres/ Cowls EYMA and DYMA External Louvres USAV Controllers Tube Fans Tube & Box Accessories Nozzles DK & DR Fläkt Woods 9513 GB 2015.08 Specifications are subject to alteration without notice.

Technical Details

Dimensions

Wiring Diagrams

GF805003 Estoc Targe Powerbox 80−500−3 by FlaktWoods
