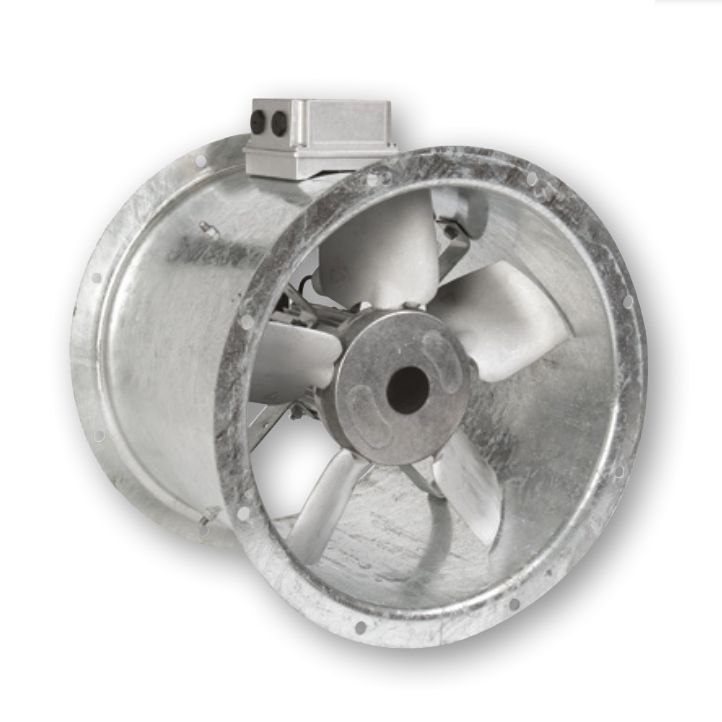

63JM/16/4/5/16/1Ph (DX641453) – Long Cased Axial Flow Extract Fan – Flakt Woods

JM Aerofoil fans deliver high aerodynamic efficiencies (up to 77%) and low specific fan powers. These benefits are achieved using Aerofoil section impeller blades and aerodynamically optimized hub design, which deliver peak operating efficiencies

• High Efficiency impeller design reduces SFP values and running costs
• Adjustable pitch impeller delivers precise performance
• Short or Long cased options provide installation flexibility
• 315 – 1600 mm diameter
• Volumes up to 186,500 m3/h (51.8 m3/s)
• Static pressures up to 2400 Pa
• Fans tested to ISO5801 and BS848
• High energy efficiency
• Low installed noise levels
• Motor protection IP55
